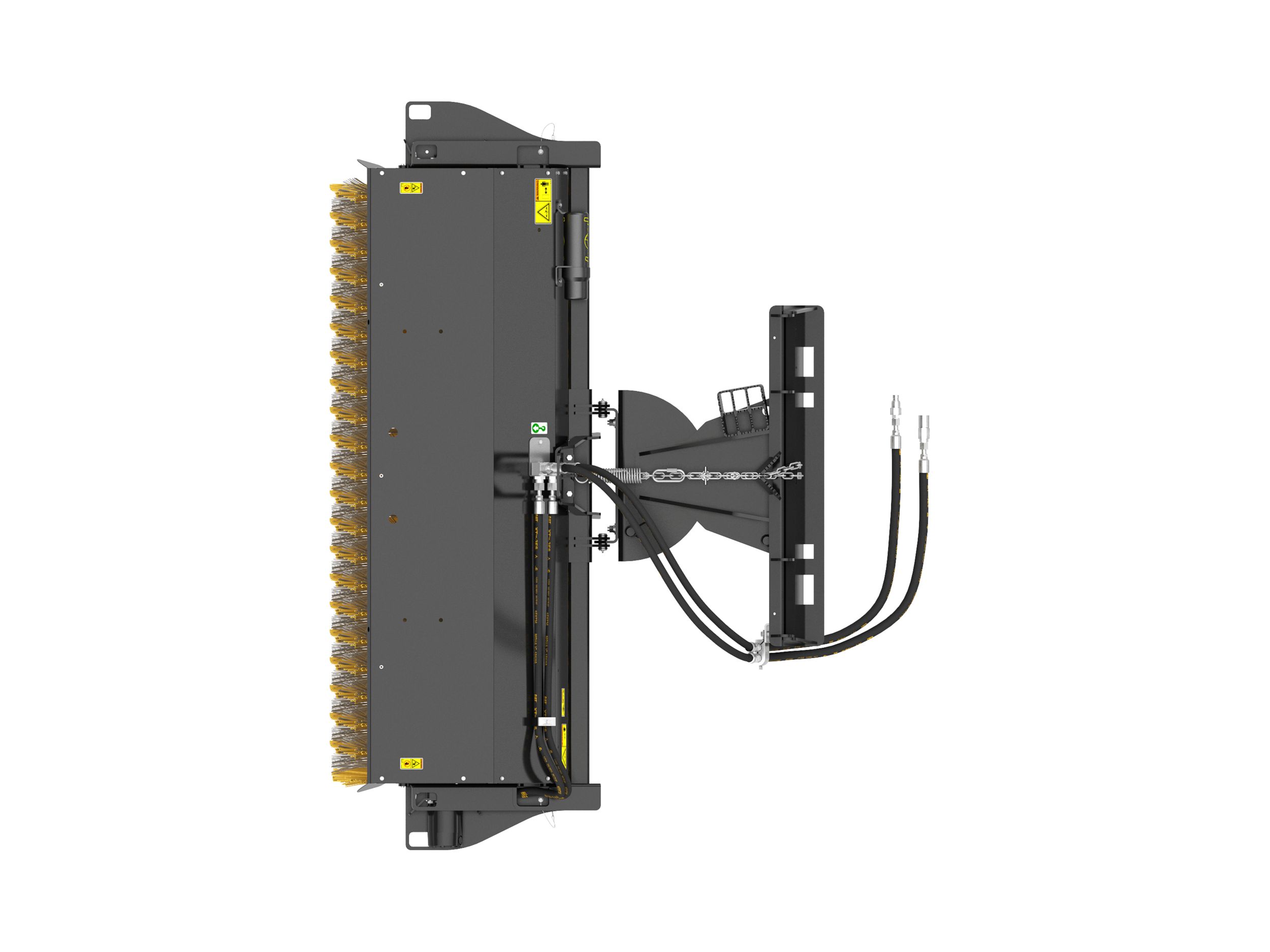

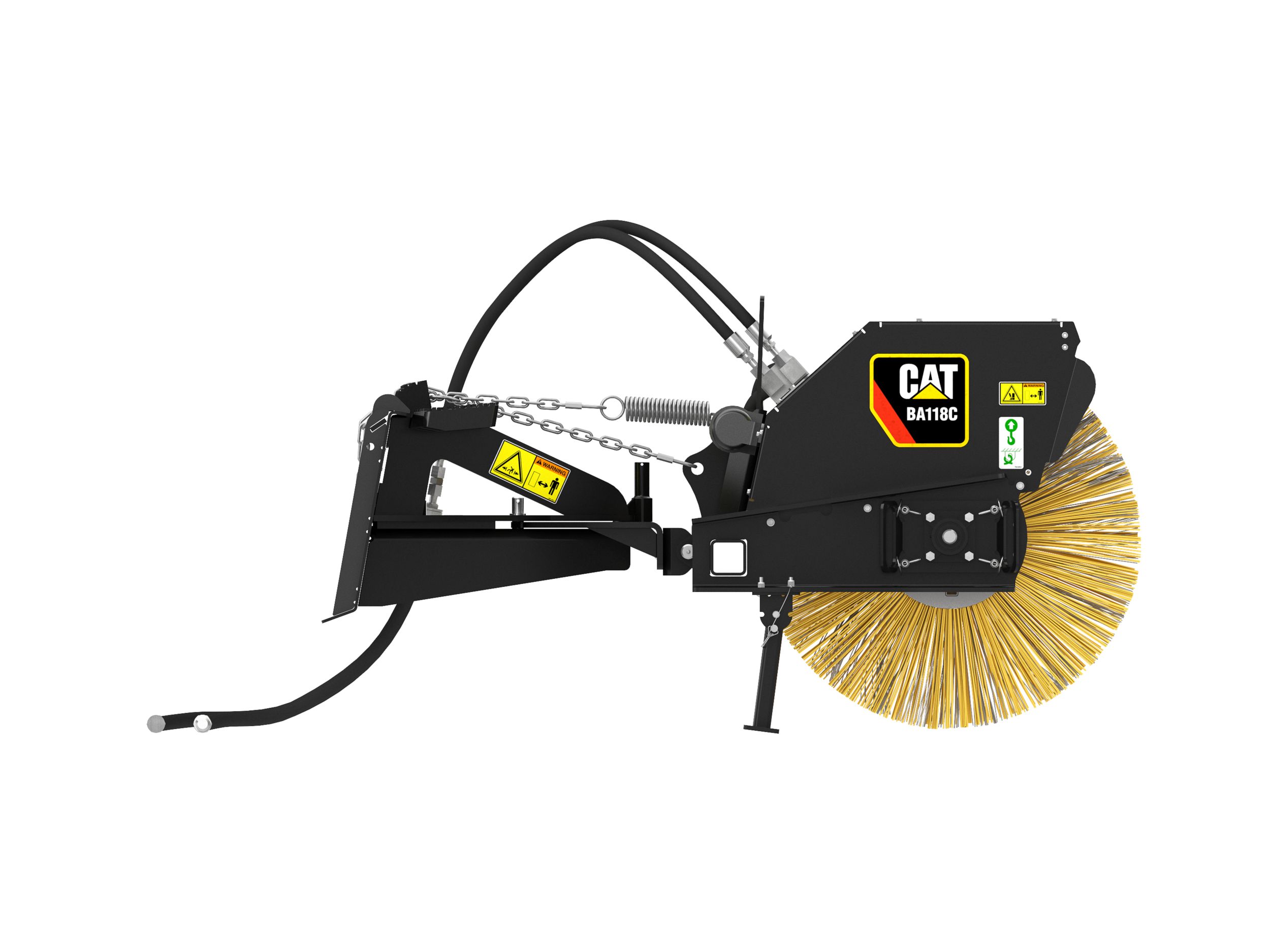

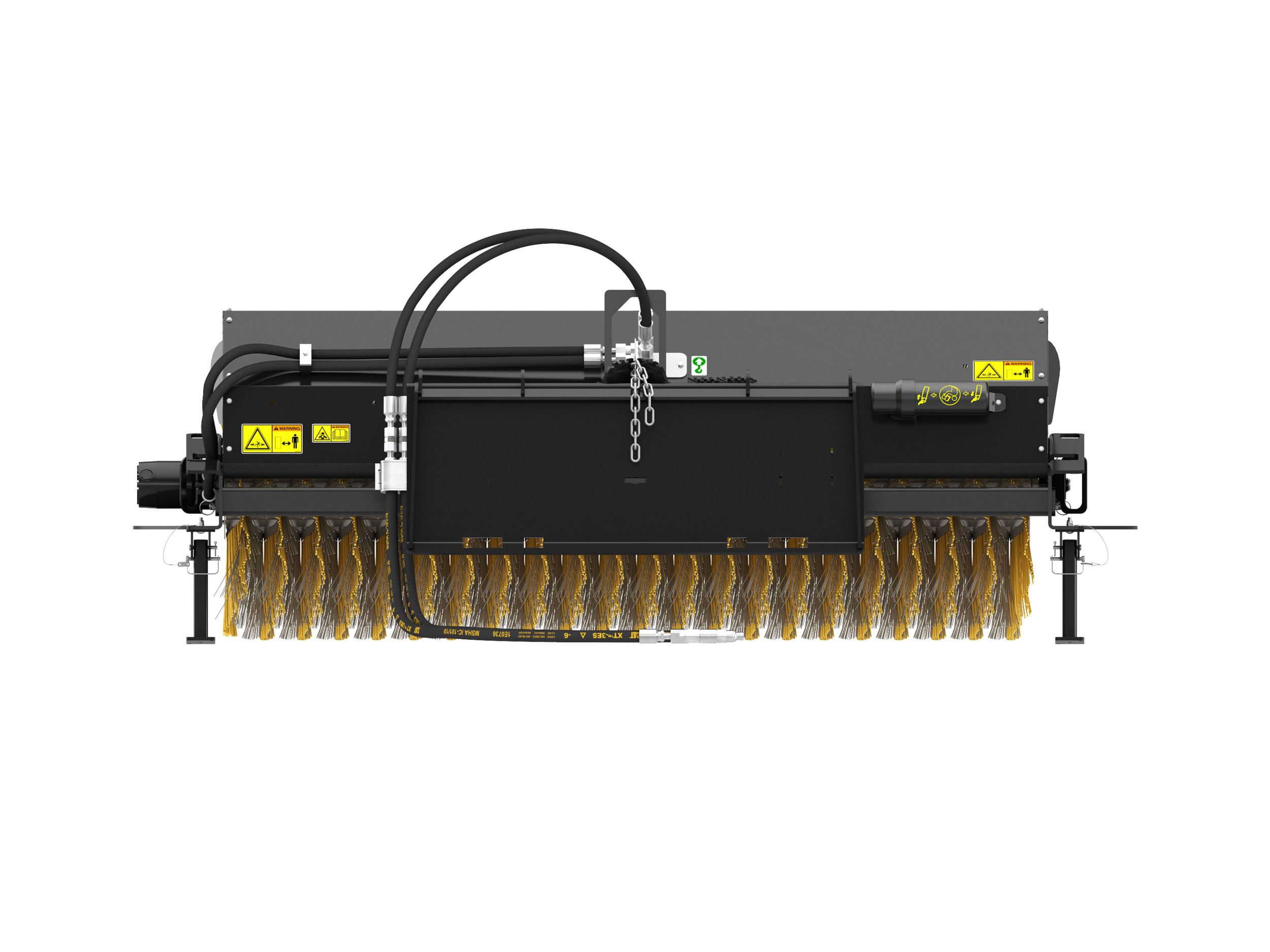

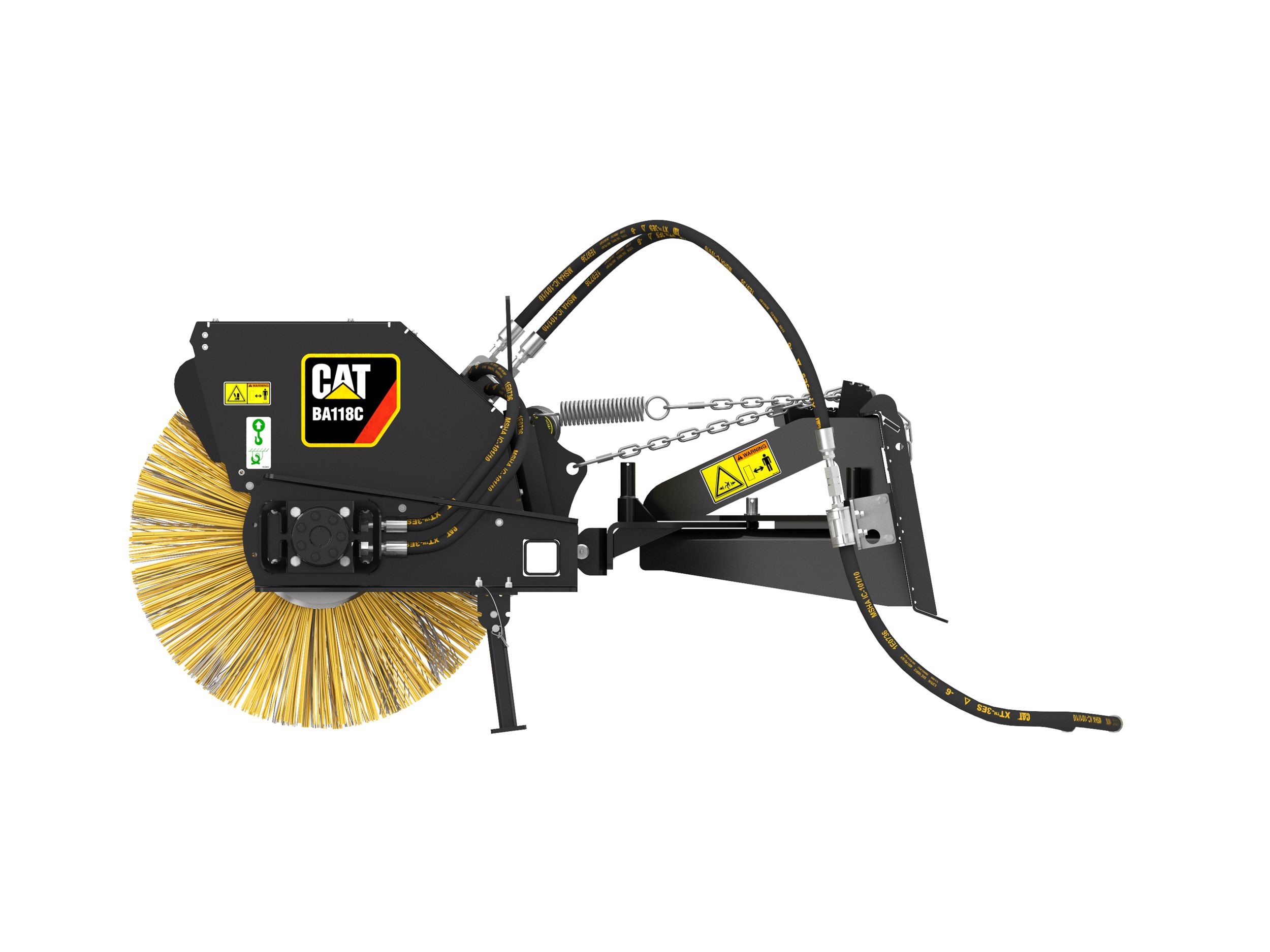

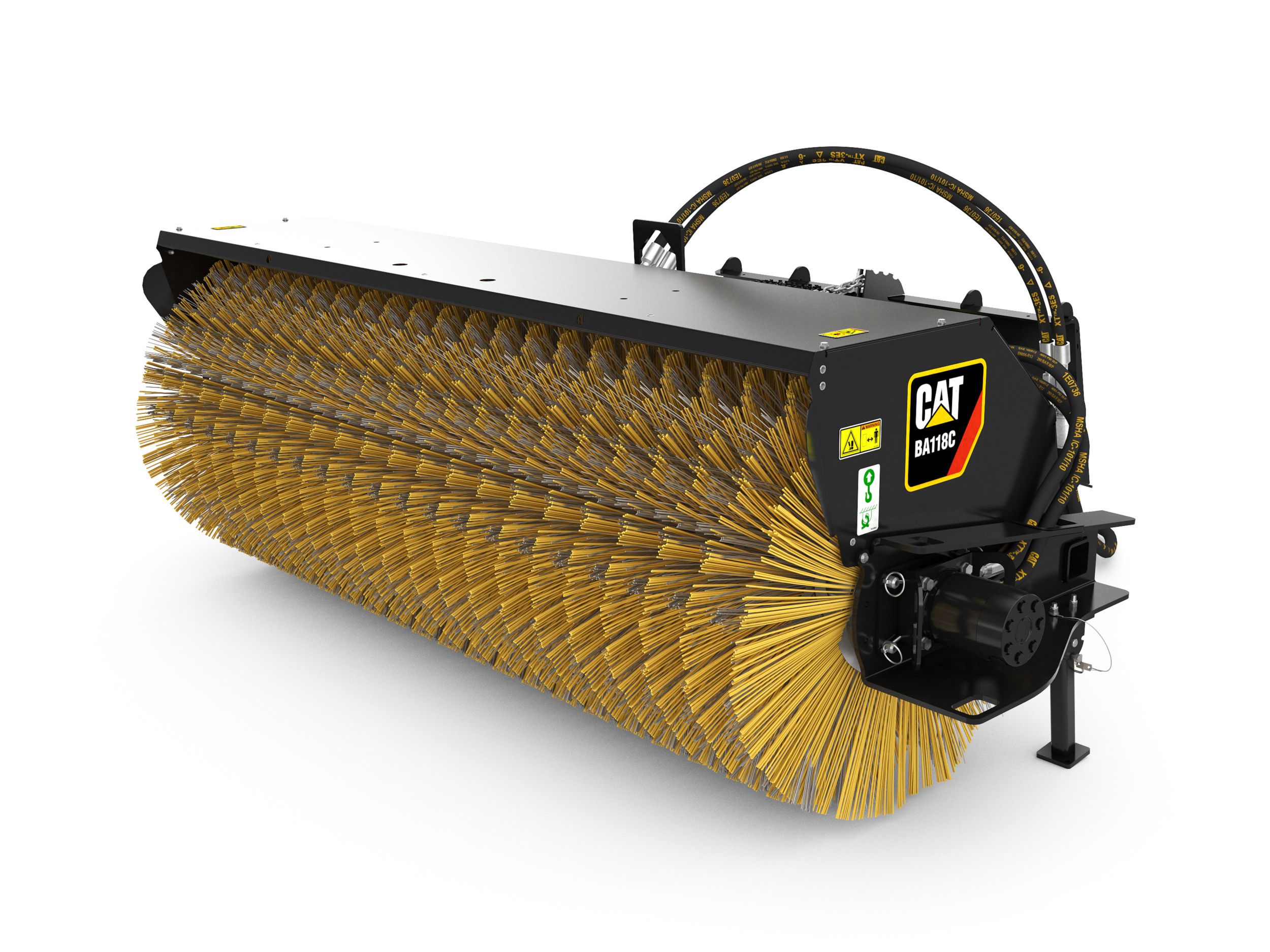

BA118C Manual Angle Broom

US
Metric

Overview

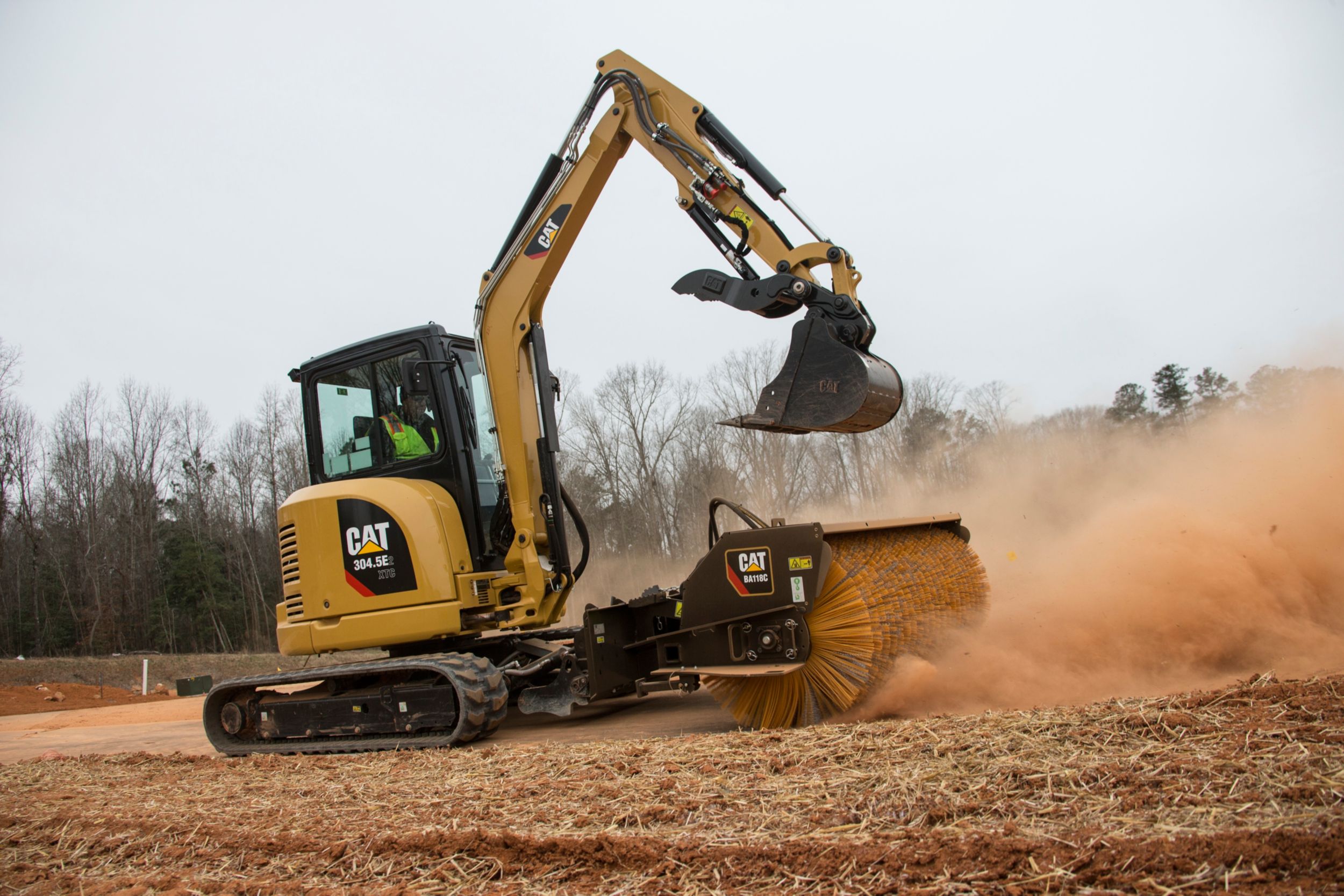

Hydraulic and Manual Cat® Angle Brooms for Skid Steer Loaders, Multi Terrain Loaders, Compact Track Loaders, Backhoe Loaders, Compact Wheel Loaders and Small Wheel Loaders are ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
Overall Width
104.00 in
2637.00 mm
Sweeping Width
83.00 in
2119.00 mm
Brush Diameter
32.00 in
815.00 mm
Required Hydraulics
Standard Flow
Height
36.00 in
918.00 mm
Length
69.00 in
1741.00 mm
Weight
905.00 lb
411.00 kg
Required Hydraulic Flow
42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Motor Displacement (per rev)
25.00 in3
405.00 cm3
Brush Speed at Maximum Flow
199 rpm
Sweeping Width Angled (± 30 degrees)
73.00 in
1849.00 mm
Overall Width Angled (± 30 degrees)
99.00 in
2508.00 mm
Optional Hood Extension
40.00 lb
18.00 kg
Drive Method
Direct Drive
Overall Width
104.00 in
2637.00 mm
Brush Diameter
32.00 in
815.00 mm
Height
36.00 in
918.00 mm
Length
69.00 in
1741.00 mm
Motor Displacement
25.00 in³/rev
405.00 cm³/rev
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Required Hydraulic Flow
42-86 L/min (11-23 gpm)
Sweeping Width - Angled (± 30 Degrees)
73.00 in
1849.00 mm
Weight
905.00 lb
411.00 kg
Drive Method
Direct Drive
Overall Width - Angled (± 30 Degrees)
99.00 in
2508.00 mm
Required Hydraulics
Standard Flow
Optimal Hydraulic Flow
42-86 L/min (11-23 gpm)
Interface Type
Skid Steer Coupler
Features

Application

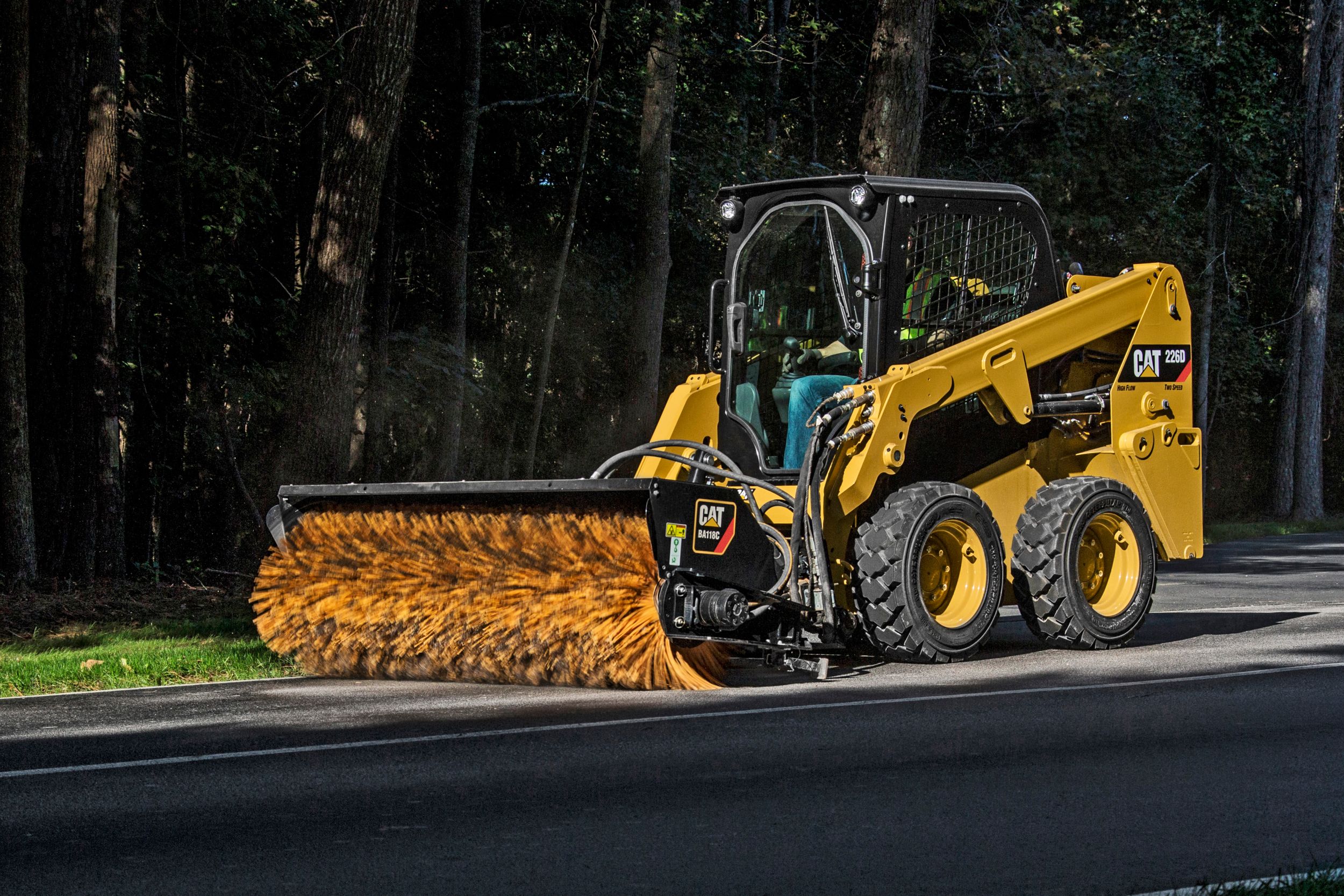

Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

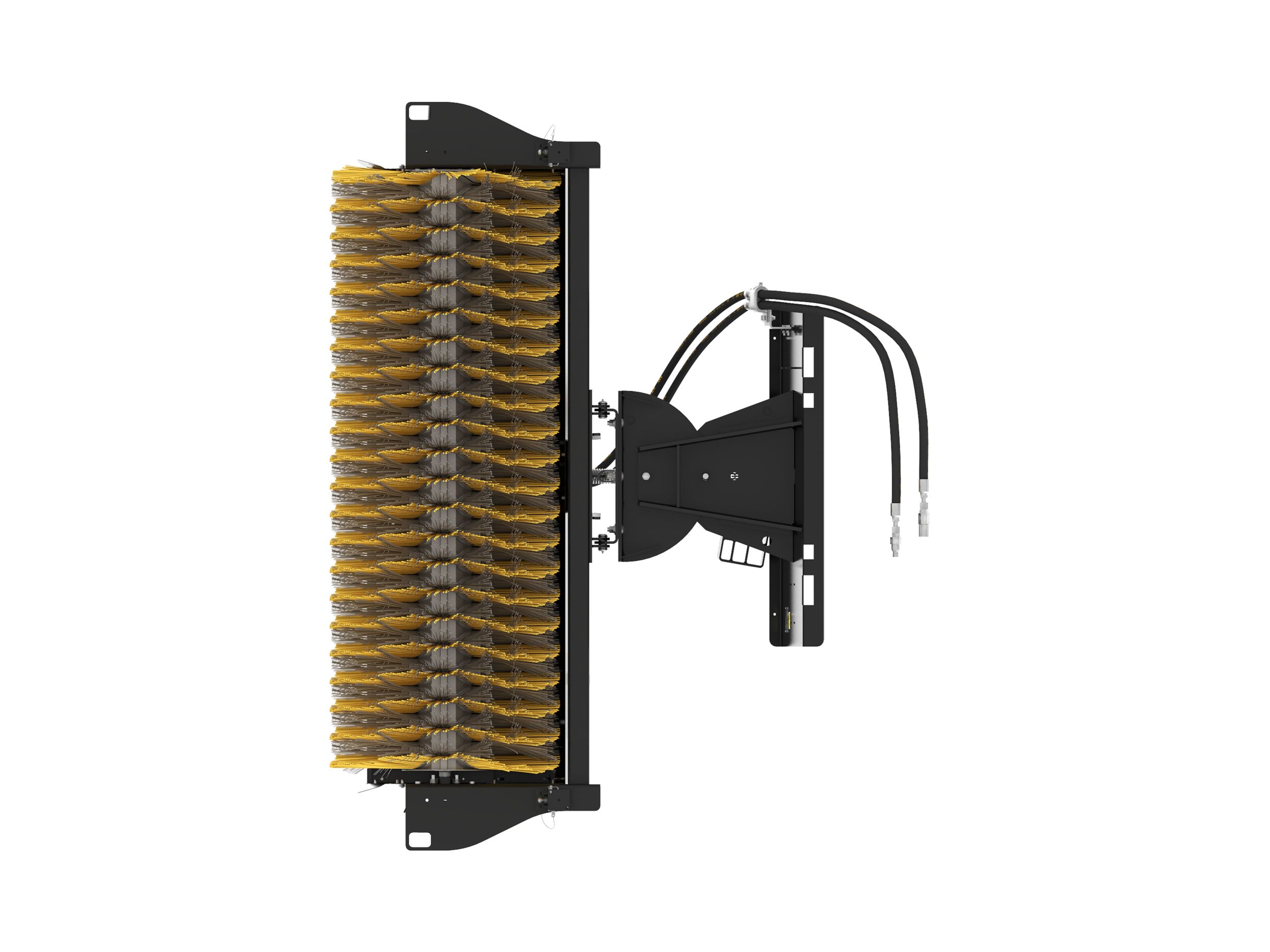

Variable Sweeping Angle

Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.

Reliable Hydraulic Motor

Strong gerotor hydraulic motor provides high torque to the bristle core and is designed to maximize performance of standard flow machines. The motor is easily removed using quick release pins for bristle wafer replacement.

Parking Supports

Parking supports provide stable and secure parking of the broom when not in use.

Optional Water Kit

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during your sweeping operations.

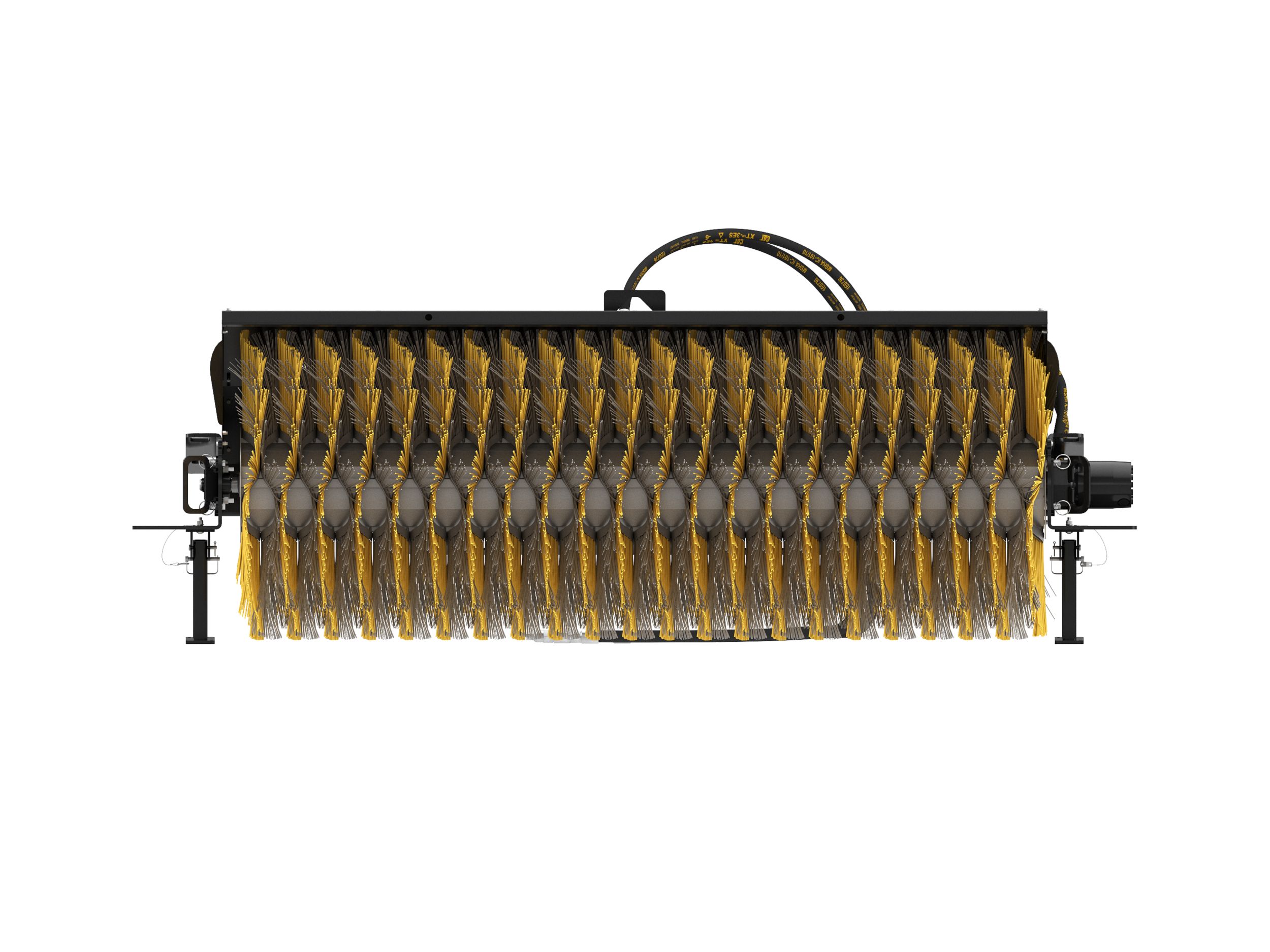

Polypropylene and Wire Bristle Options

Cat® Angle Brooms come standard with a 50/50 mix of replaceable polypropylene and steel wire sections. Convoluted bristle sections can be converted to all wire or all poly for special applications.
