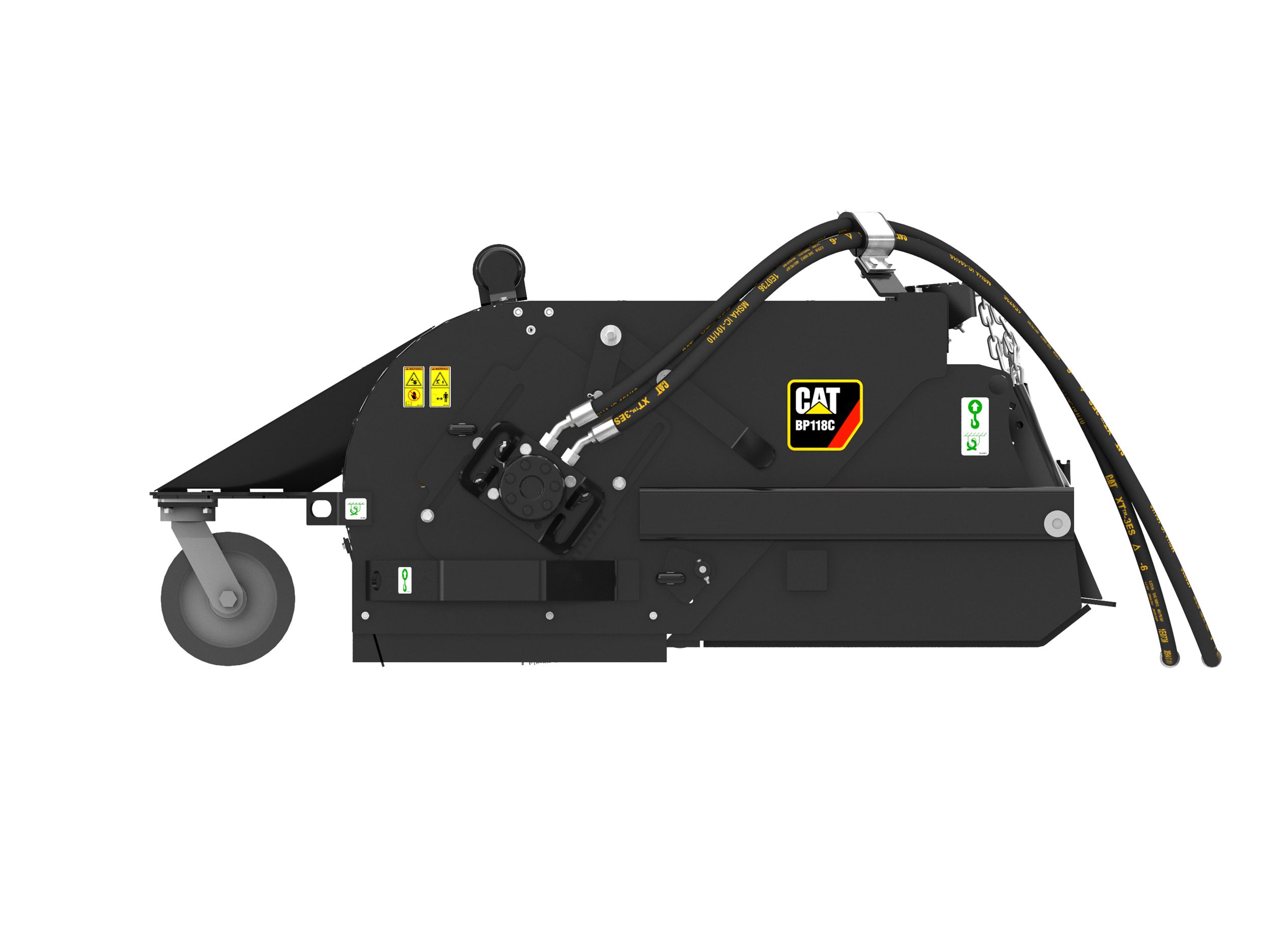

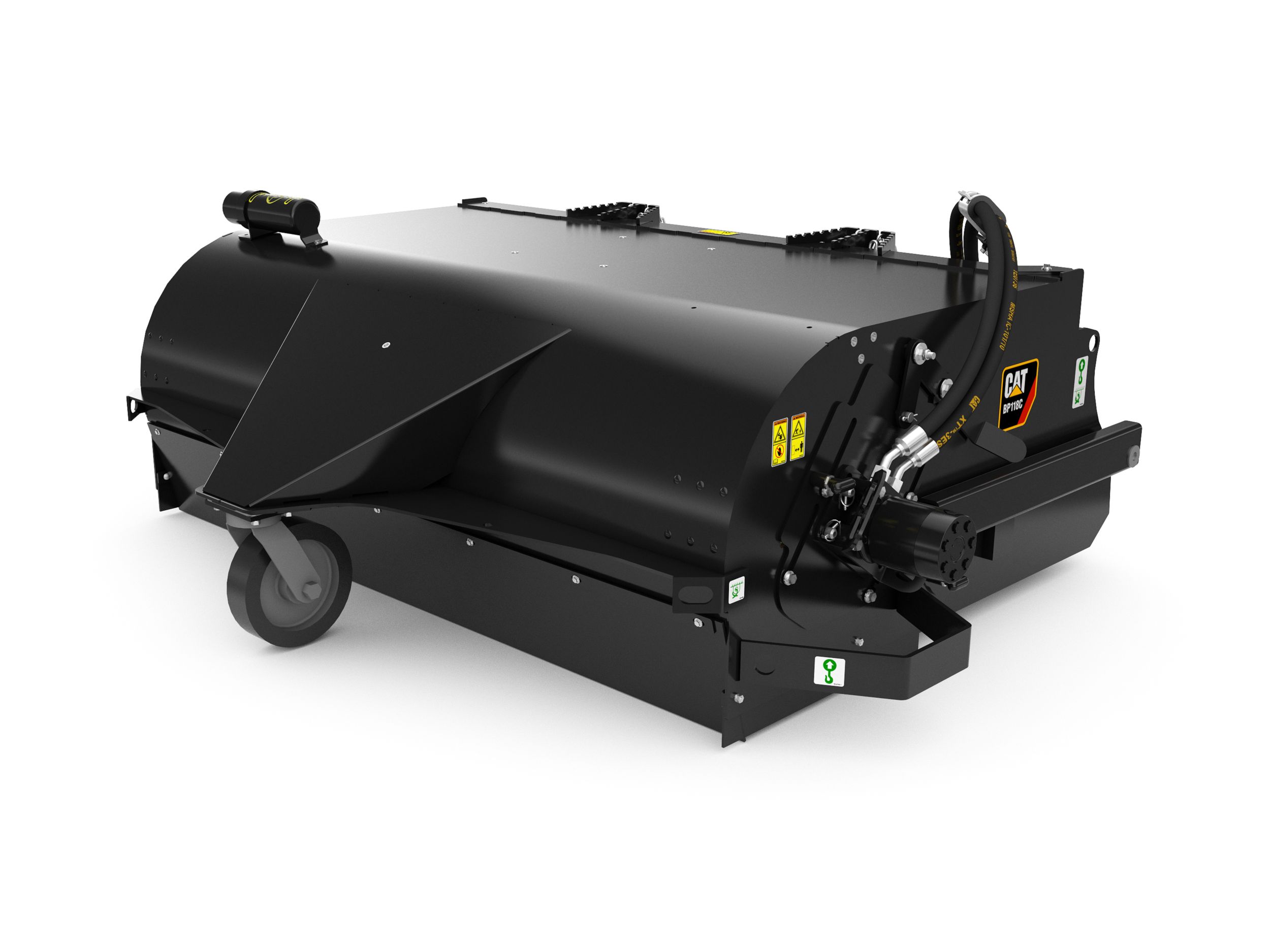

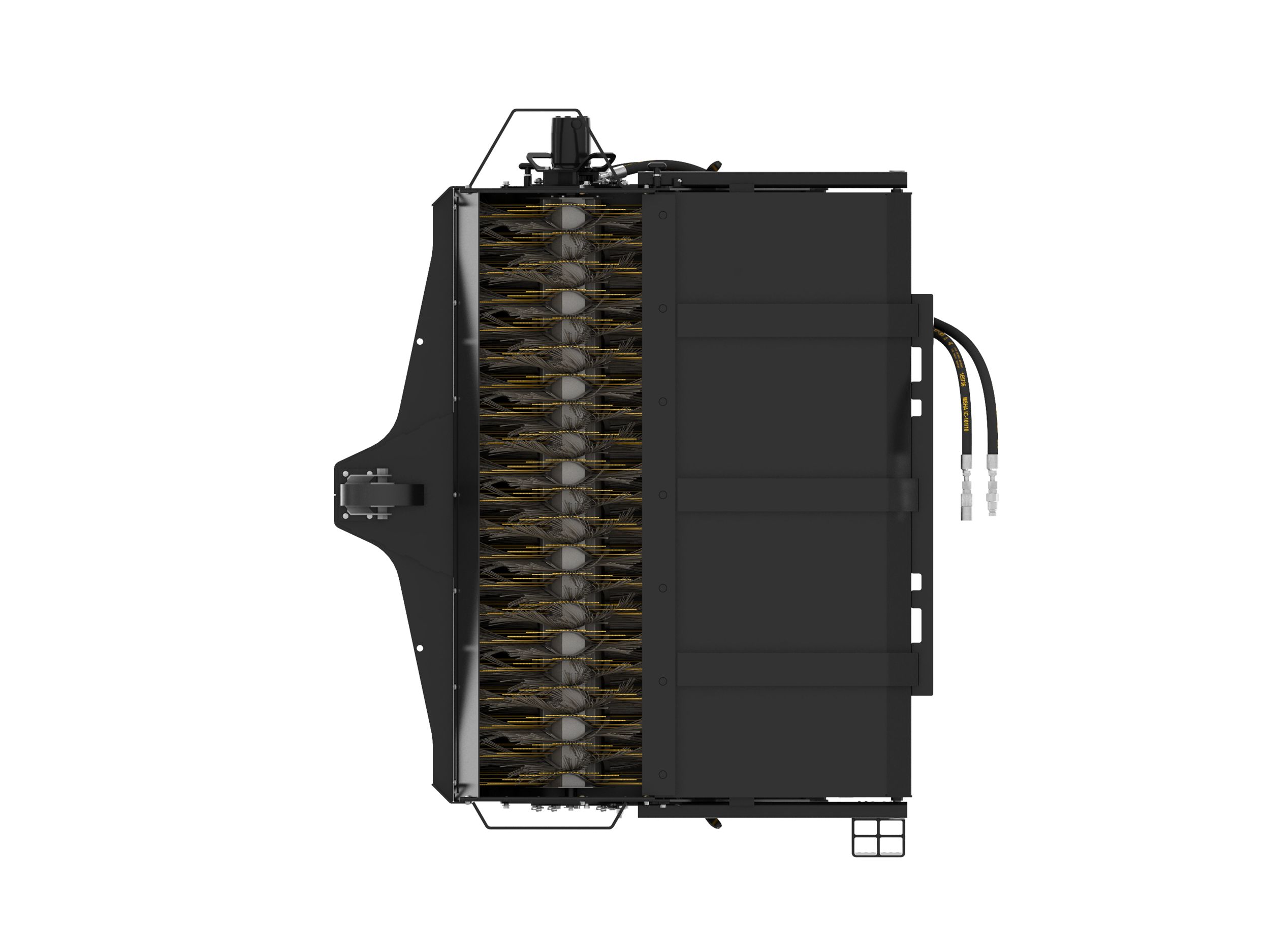

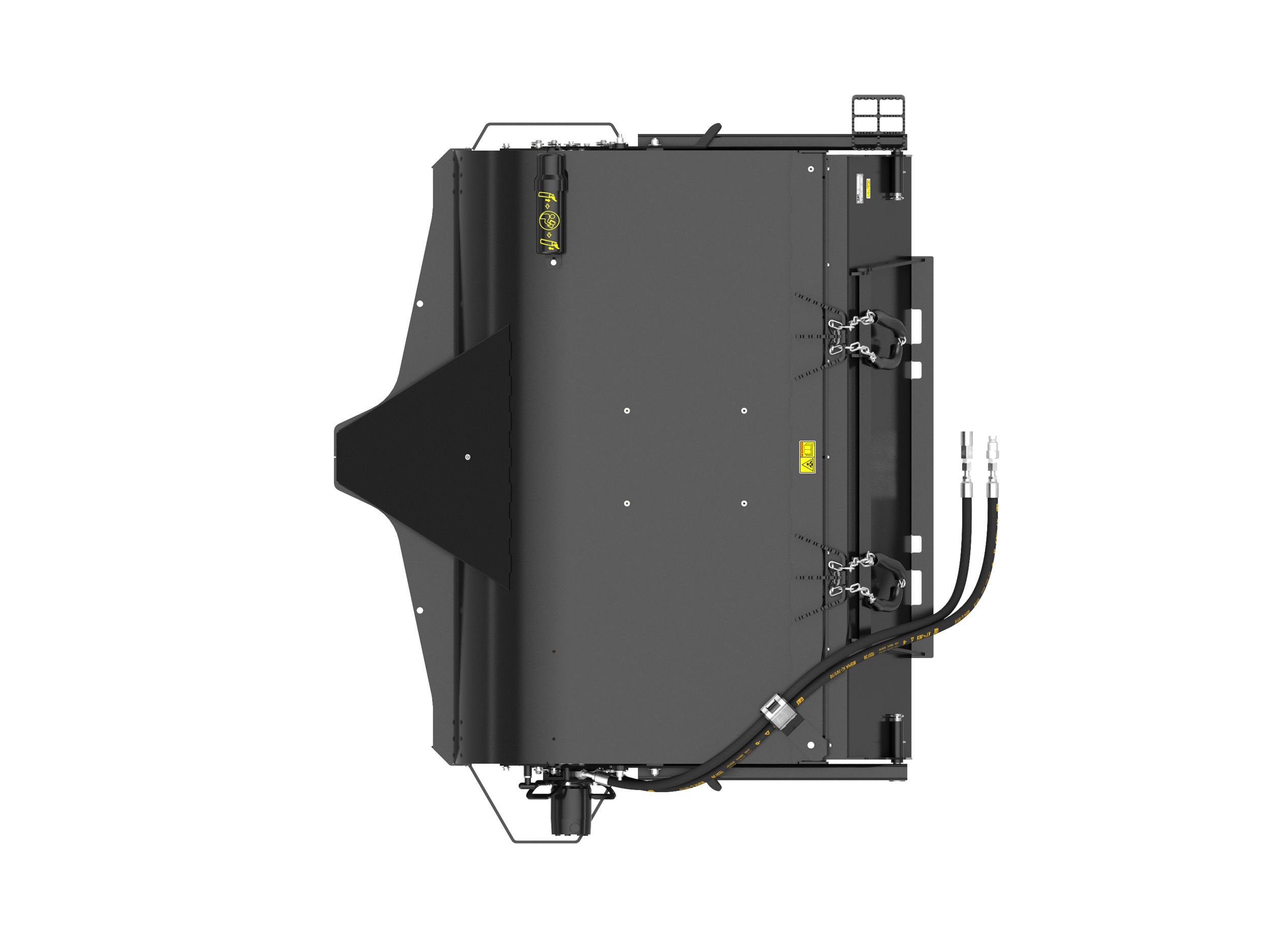

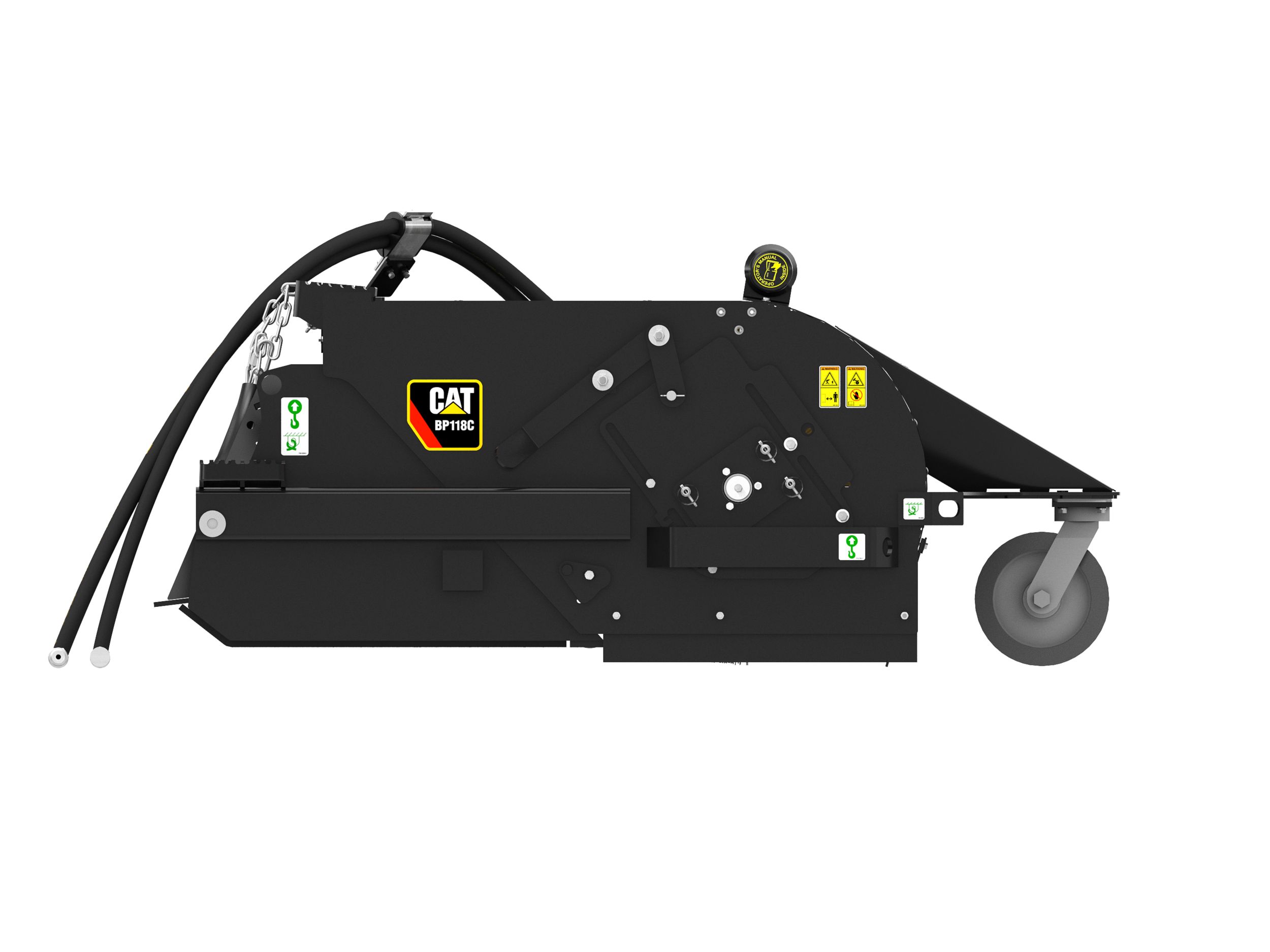

BP118C Pickup Broom

US
Metric

Overview

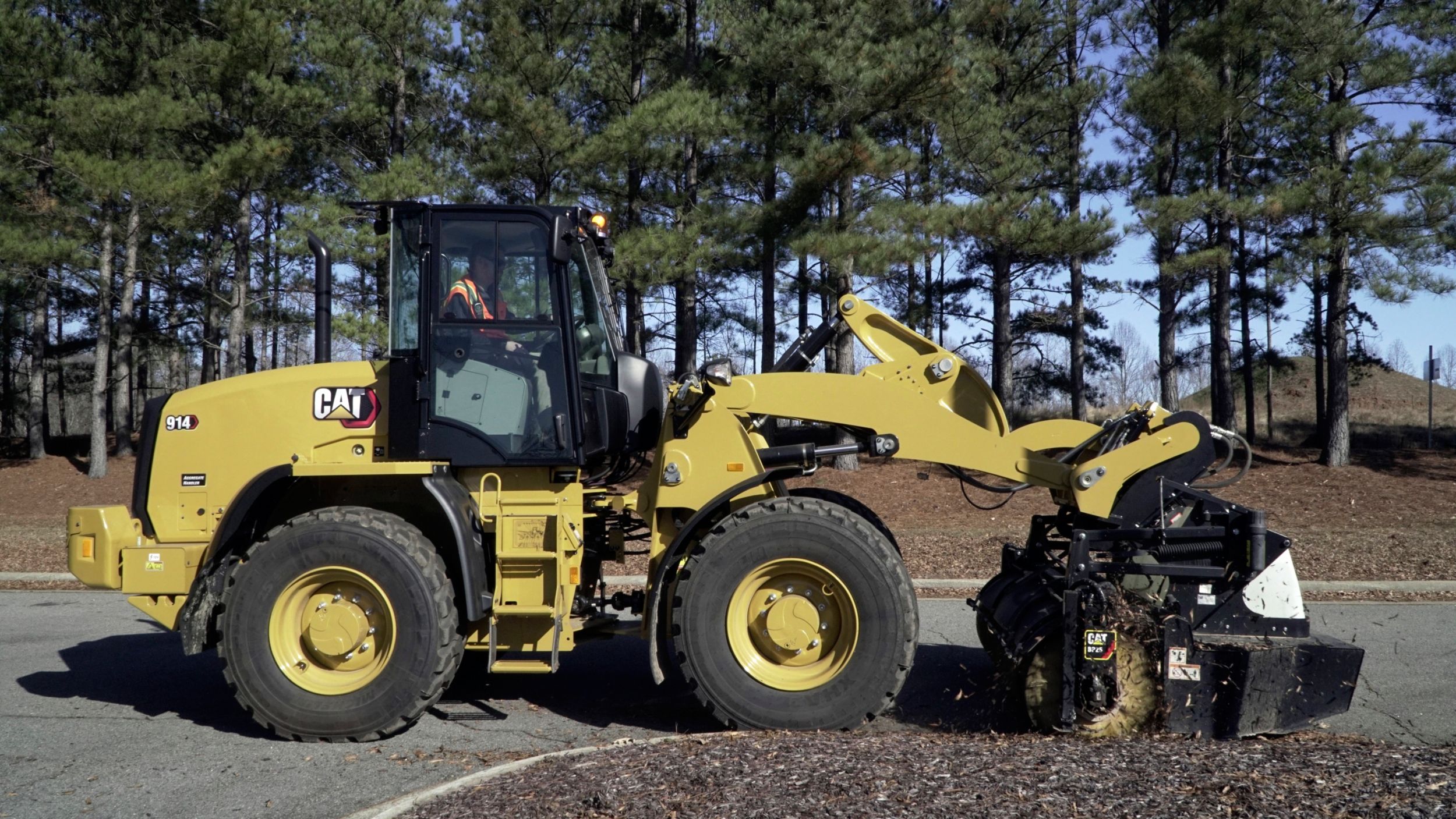

Pickup Brooms for Cat® Skid Steer Loaders, Backhoe Loaders, Integrated Toolcarriers, and Wheel Loaders sweep and deposit materials into an integrated hopper for easy removal and dumping.
Overall Width
90.00 in
2295.00 mm
Sweeping Width
72.00 in
1829.00 mm
Brush Diameter
26.00 in
660.00 mm
Required Hydraulics
Standard Flow
Height
34.00 in
872.00 mm
Length
72.00 in
1837.00 mm
Weight
1258.00 lb
570.00 kg
Required Hydraulic Flow
42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Motor Displacement (per rev)
25.00 in3
405.00 cm3
Brush Speed at Maximum Flow
199 rpm
Hopper Capacity
17.40 ft³
0.49 m³
Gutter Brush Weight
90.00 lb
41.00 kg
Drive Method
Direct Drive
Overall Width
90.00 in
2295.00 mm
Brush Diameter
26.00 in
660.00 mm
Height
34.00 in
872.00 mm
Length
72.00 in
1837.00 mm
Motor Displacement
25.00 in³
405.00 cm³
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Required Hydraulic Flow
42-86 L/min (11-23 gpm)
Weight
1258.00 lb
570.00 kg
Drive Method
Direct Drive
Required Hydraulics
Standard Flow
Features

Application

Ideal for cleaning and removing dirt, rock, snow and other debris from streets, parking lots, driveways, sidewalks and factory floors.

Large Hopper Capacity

Large hopper capacity allows greater productivity with longer sweeping cycles. Wide bucket opening permits fast, efficient dumping.

Adjustable Volumizer

Adjustable volumizer allows more material retention in hopper, giving operator more sweeps before stopping to empty material.

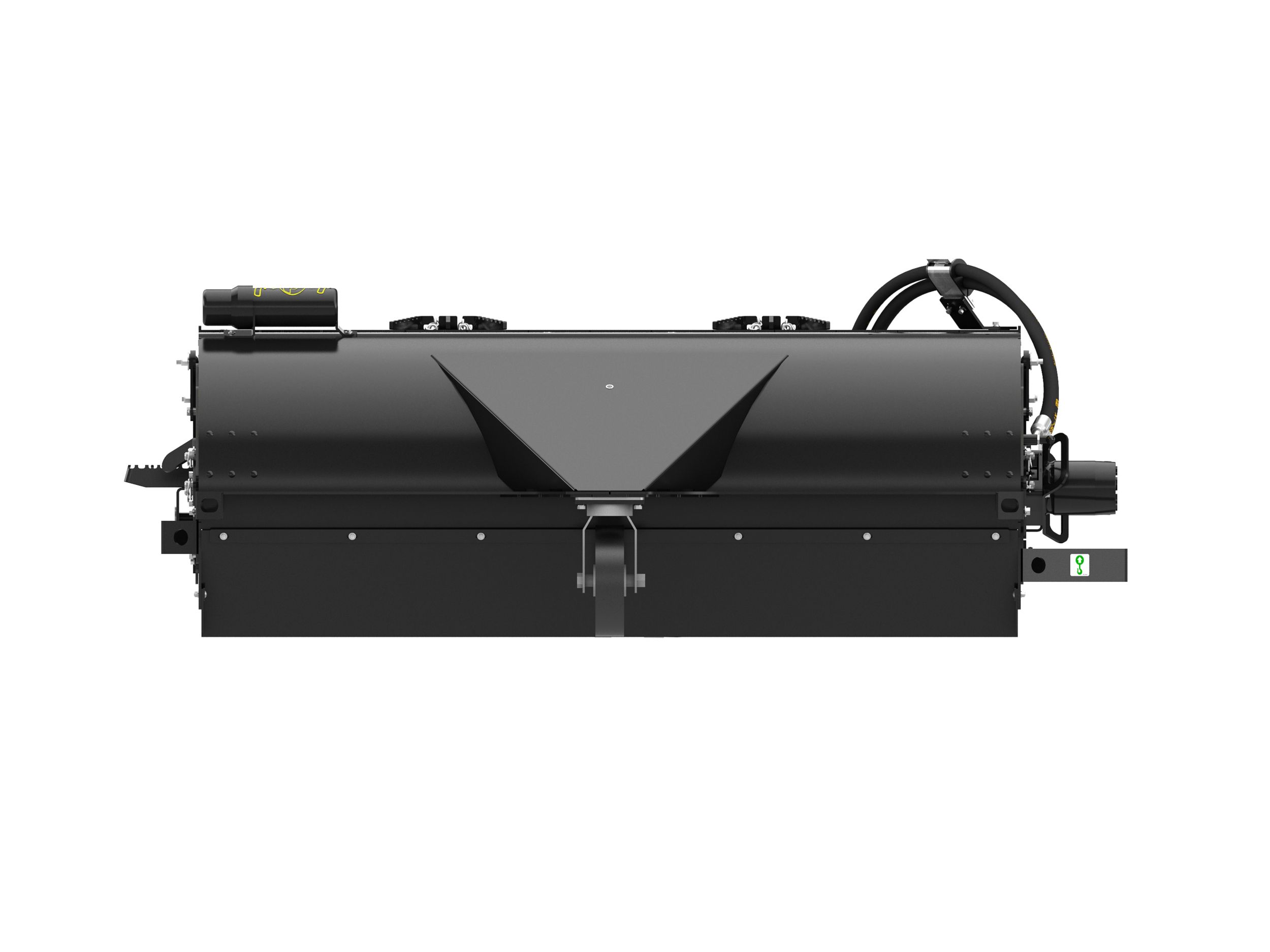

Guide Wheel

Heavy-duty low profile pneumatic guide wheel supports the hood during sweeping.

Optional Gutter Brush

Optional all-steel wire gutter brush mounted on the left or right side of the broom assists in removing material from gutters and pavement edges.

Optional Dust Control

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during sweeping operations.

Broom Material Options

Standard broom material is made of replaceable polypropylene and steel wire sections. Optional replacement brushes include all polypropylene and all steel wire.

Interior Deflectors

Interior deflectors, rear bucket seal, and side brush stripping direct dirt and dust into the bucket, reducing spillage and air-borne contaminants.

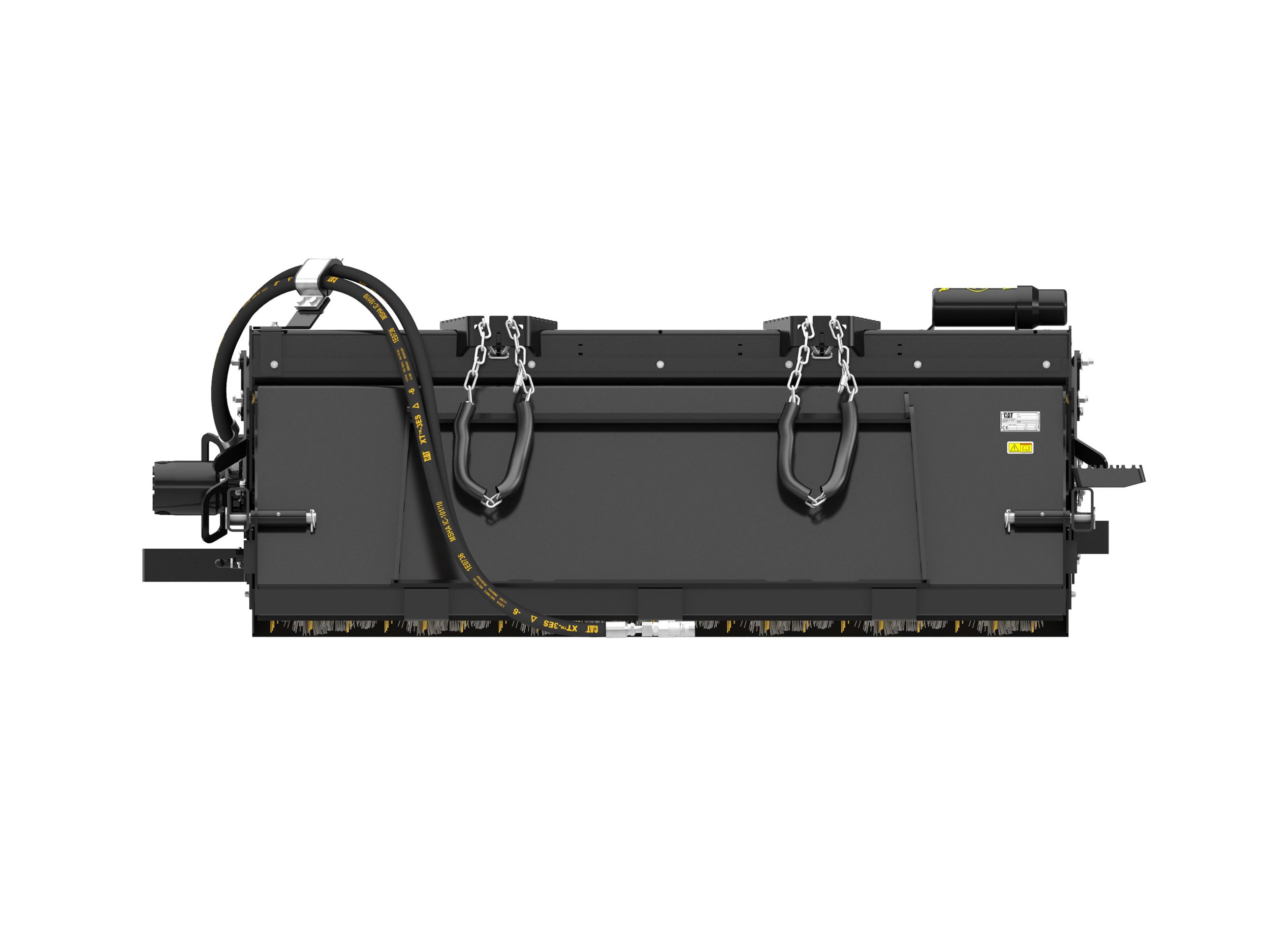

Dual Chain and Loader Arm Bracket System

Dual chain and loader arm bracket system holds broom housing horizontally when emptying the hopper.

Bristle Height Adjustment

Bristle height adjustments have been simplified with the use of handle and a tool-less locking feature.

Motor Serviceability

Motor serviceability is enhanced with a handle shaped motor bracket, core connection is close to broom wall and single retention pins allow for quick brush change and less downtime.

Replaceable Bolt-on Cutting Edges

Replaceable bolt-on cutting edges increase wear life of hopper bucket.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
