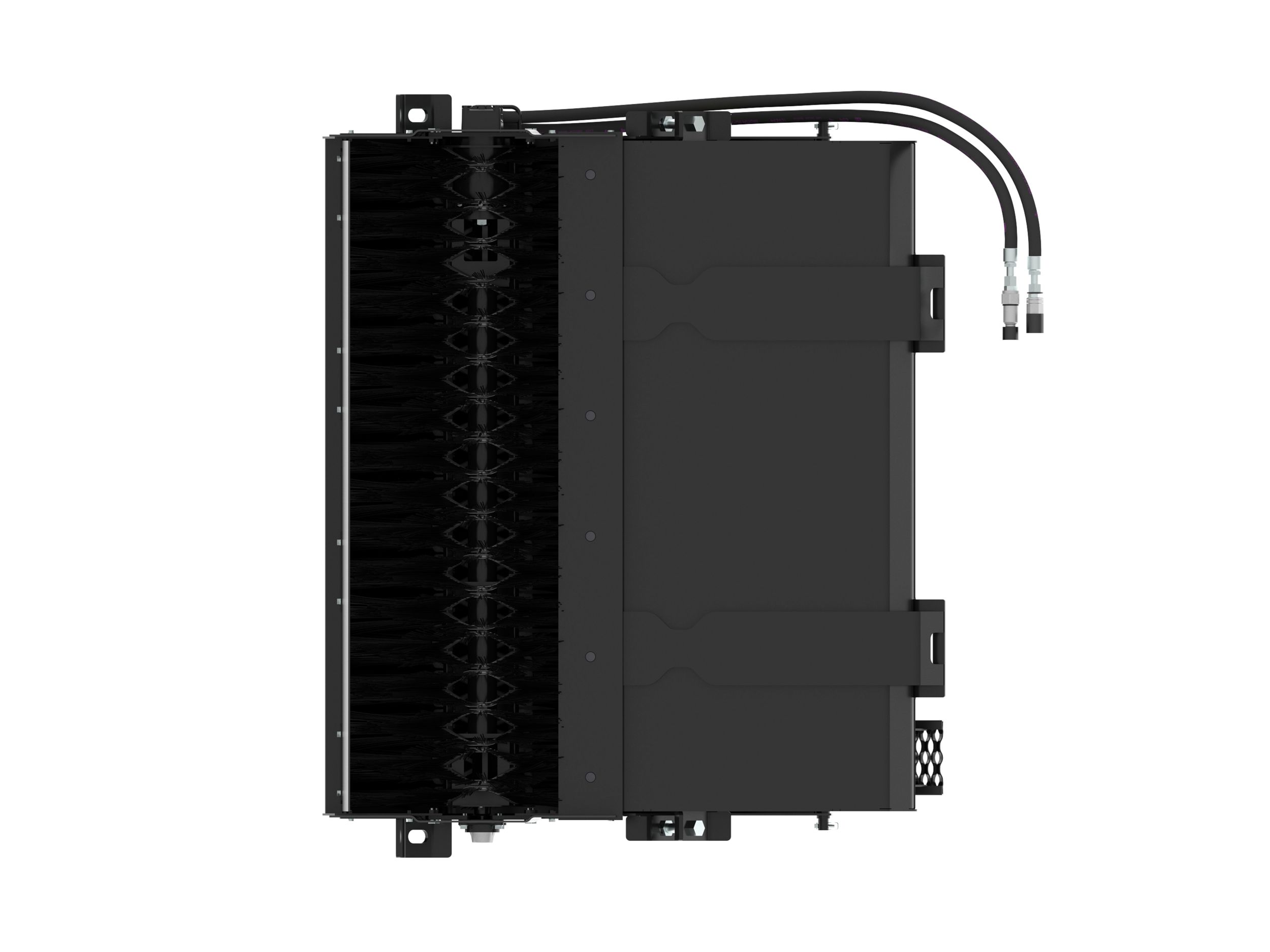

BU115 Utility Broom

US
Metric

Overview

Cat® Utility Brooms sweep and collect debris on smooth surfaces in forward or reverse travel. The Utility Broom is recommended for spoil removal during cold planing applications. The Utility Broom can be adjusted for greater bristle down-force in tough applications such as sweeping course material out of a cold planer cut.
Overall Width
71.00 in
1810.00 mm
Sweeping Width
59.00 in
1510.00 mm
Brush Diameter
26.00 in
660.00 mm
Required Hydraulics
Standard Flow
Height
31.00 in
793.00 mm
Length
59.00 in
1490.00 mm
Weight
947.00 lb
430.00 kg
Required Hydraulic Flow
30-83 L/min (8-22 gpm)
Optimal Hydraulic Pressure
145-227 bar (2100-3300 psi)
Motor Displacement (per rev)
24.00 in3
393.00 cm3
Brush Speed at Maximum Flow
190 rpm
Hopper Capacity
14.90 ft³
0.42 m³
Gutter Brush Weight
88.00 lb
40.00 kg
Drive Method
Direct Drive
Overall Width
71.00 in
1810.00 mm
Brush Diameter
26.00 in
660.00 mm
Height
31.00 in
793.00 mm
Length
59.00 in
1490.00 mm
Motor Displacement
24.00 in³
393.00 cm³
Optimal Hydraulic Pressure
145-227 bar (2100-3300 psi)
Required Hydraulic Flow
30-83 L/min (8-22 gpm)
Weight
947.00 lb
430.00 kg
Drive Method
Direct Drive
Required Hydraulics
Standard Flow
Features

Application

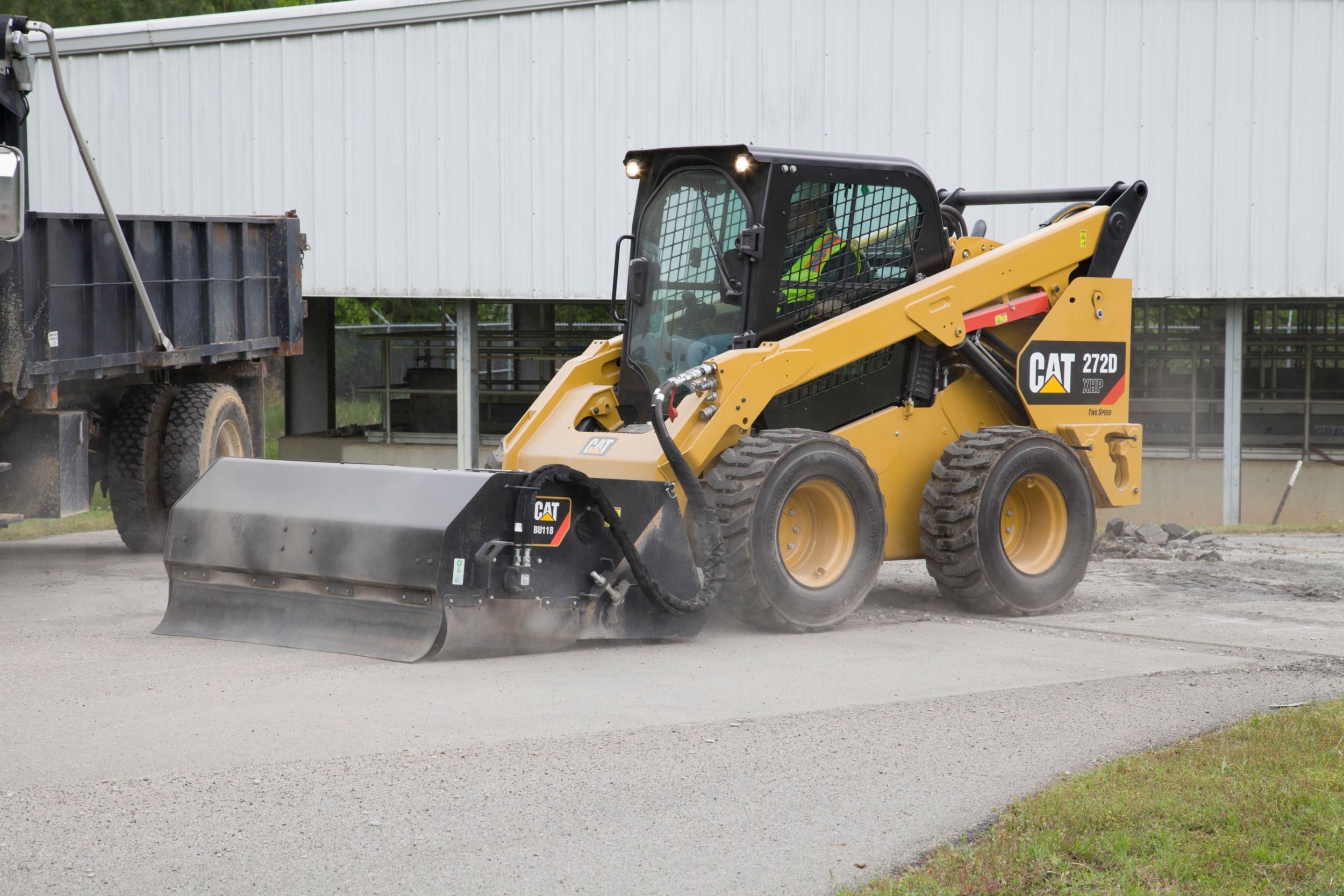

Ideal for cleaning and removing dirt, rock, snow and other debris from streets, parking lots, driveways, sidewalks and factory floors.

Bi-Directional Sweeping

Utility Brooms have the ability to sweep and collect light debris on smooth surfaces in both forward or reverse.

Large Hopper Capacity

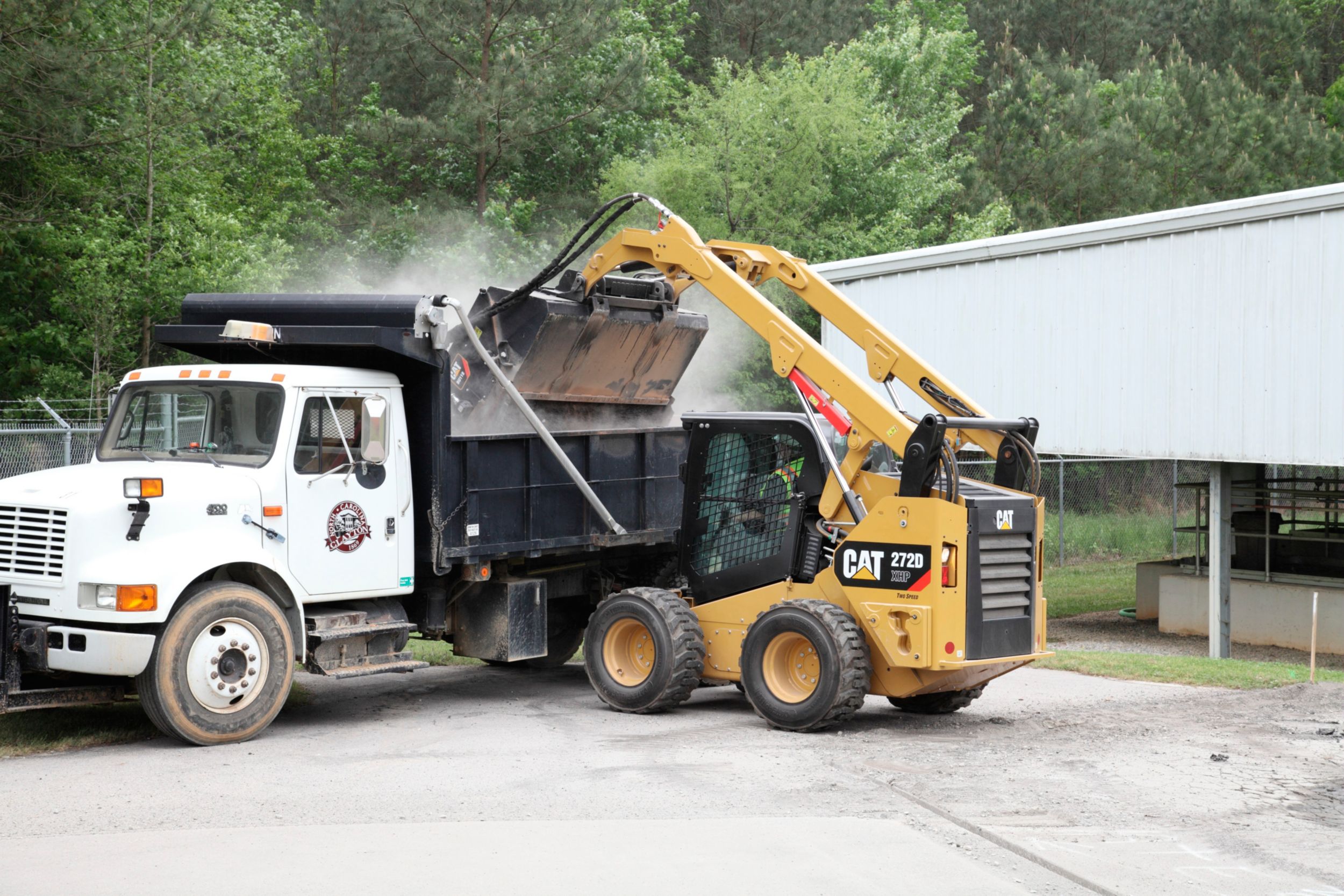

Large hopper capacity allows greater productivity with longer sweeping cycles. Wide bucket opening with bolt-on, replaceable cutting edge permits fast, efficient dumping.

Rubber Boots

Rubber boots on front and sides of broom aid in containing debris and airborne contaminants during sweeping.

Broom Material Options

Standard broom material is made of replaceable polypropylene and steel wire sections. Optional replacement brushes include all polypropylene and all steel wire.

Optional Dust Control

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during your sweeping operations.
